Based on the ever popular X40 Cube that has been around for the last 8 years, the X40 Cube PLUS incorporates some subtle design changes to give it a cosmetic update for 2018.  These changes include a thicker top plate and a built-in ash lip and with the airwash slider repositioned in the convection slot allows for a taller door.

With a full height door, this allows an unparalleled view of the fire burning brightly in the firebox and with its shallow slimline depth, this stove offers contemporary and minimalist styling with clean burn performance from its efficient firebox.



Features

  • 4.5kW nominal output

  • Heat output 2-6kW

  • Max log length of 380mm

  • 80% efficiency

  • Convector top plate

  • Heavy duty 5mm steel body

  • 10mm steel top plate

  • Built-in 10mm thick ashlip

  • Cast iron grate

  • Tertiary air for clean burn performance

  • Simple air sliders to control both primary and secondary air wash to keep glass clean

  • Spare parts available

  • 5 years guarantee on the body

  • HETAS approved for solid fuel and woodburning

  • Smoke Exemption Approved for use in smoke control areas



Options​

  • Stainless steel, chrome or wooden handle

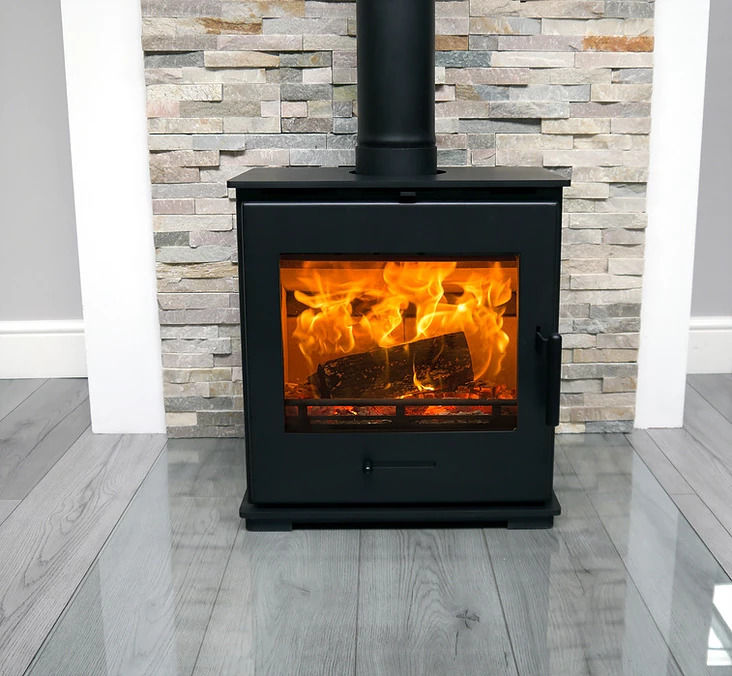

Pevex X40 Cube Plus

Handle Colour
  • Width x depth x height (mm) 496 x 305 x 537
    Weight (kg) 72
    Log length (mm) 380
    Flue dia. (mm) outlet & position 128
    Nominal output (kW) 4.5
    Range rating (kW) 2-6
    Distance from rear of stove to centre of top flue outlet (mm) 131
    Distance to flammable materials: From back (mm) 400
    - From back with optional heat shield fitted (mm) 175
    - From sides (mm) 400
    - From front (mm) 800
    Heating area (m²)
    Efficiency (net): Wood 80
    Efficiency (net): Smokeless fuel 72.5
    CO% @ 13% O2: Wood 0.14
    CO% @ 13% O2: Smokeless fuel 0.33
    Certified CE & EN13240
    Defra
