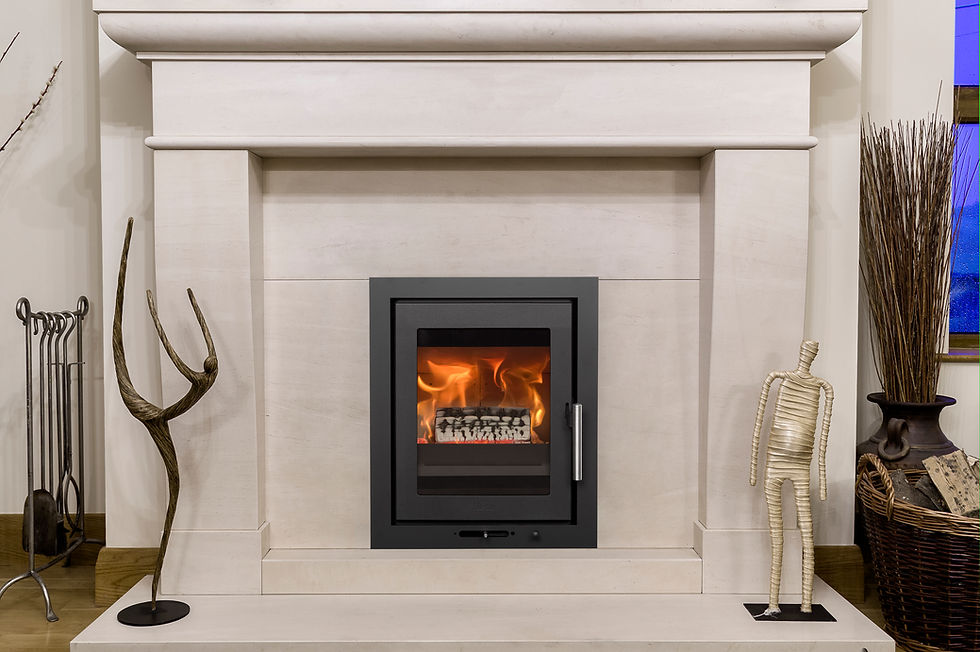

Built to fit inside an existing UK 16x22" fireplace opening, the Inspire 40 Inset is a portrait stove with a large cast iron door that maximises the view of the fire creating a stunning impression in your home. A discreet single level air control allows optimal combustion throughout the 2-6kW output range for tranquility and pleasure.

Features

4kW nominal output
84% efficiency
300mm log length
Large cast iron door
Precision air control lever
Fits into 16x22" UK fireplace opening
Defra approval

Options

Available in black or grey painted colour options

Heta Inspire 40 Inset

Model	Inspire 40 Inset
Width x depth x height (mm) - Stove excluding frame	406 x 344 x 554
FRAME OPTIONS (w x d x h) (mm):
Flat floor model (click here to see drawings)	481 x 3 x 579
Classic floor model/convection (click here to see drawings)	481 x 35 x 579
Four sided flat wall model (click here to see drawings)	501 x 3 x 598
Hidden wall model (click here to see drawings)	416 x 20 x 558
Weight (kg)	67-80
Log length (mm)	300
Flue dia. (mm) outlet & position	125
Nominal output (kW)	4
Range rating (kW)	2-6
Distance from rear of stove to centre of top flue outlet (mm) - Flue in upright position	114
Distance from rear of stove to centre of top flue outlet (mm) - Flue at 45 degrees	54
Distance to flammable materials: From back (mm)	210
Distance to furniture (mm)	900
Heating area (m²)	20-80
Efficiency (net): Wood	84%
Efficiency (net): Smokeless fuel
CO% @ 13% O2: Wood	0.05
CO% @ 13% O2: Smokeless fuel
Certified	CE & EN13229
Distance from rear of stove to centre of top flue outlet (mm) - Flue at 45 degrees	Pending
